The motor can be purchased separately or combined with either a single reduction gearbox or a double reduction gearboxes. The latter units give slightly better control. Gearboxes may also be purchased separately. Flywheels for these units, which are optional extra, are available in two sizes – 22.0 mm or 28.5 mm diameter.

The single reduction gearbox with this motor is available in three ratios, 18:1, 25:1 or 36:1 – the lower the number the faster the locomotive.

The double reduction gearbox with this motor is available in two ratios; 25:1 & 33:1 – the lower the number the faster the drive axle revolves. JH double reduction units are also available with 1/4” axle for Gauge 1.

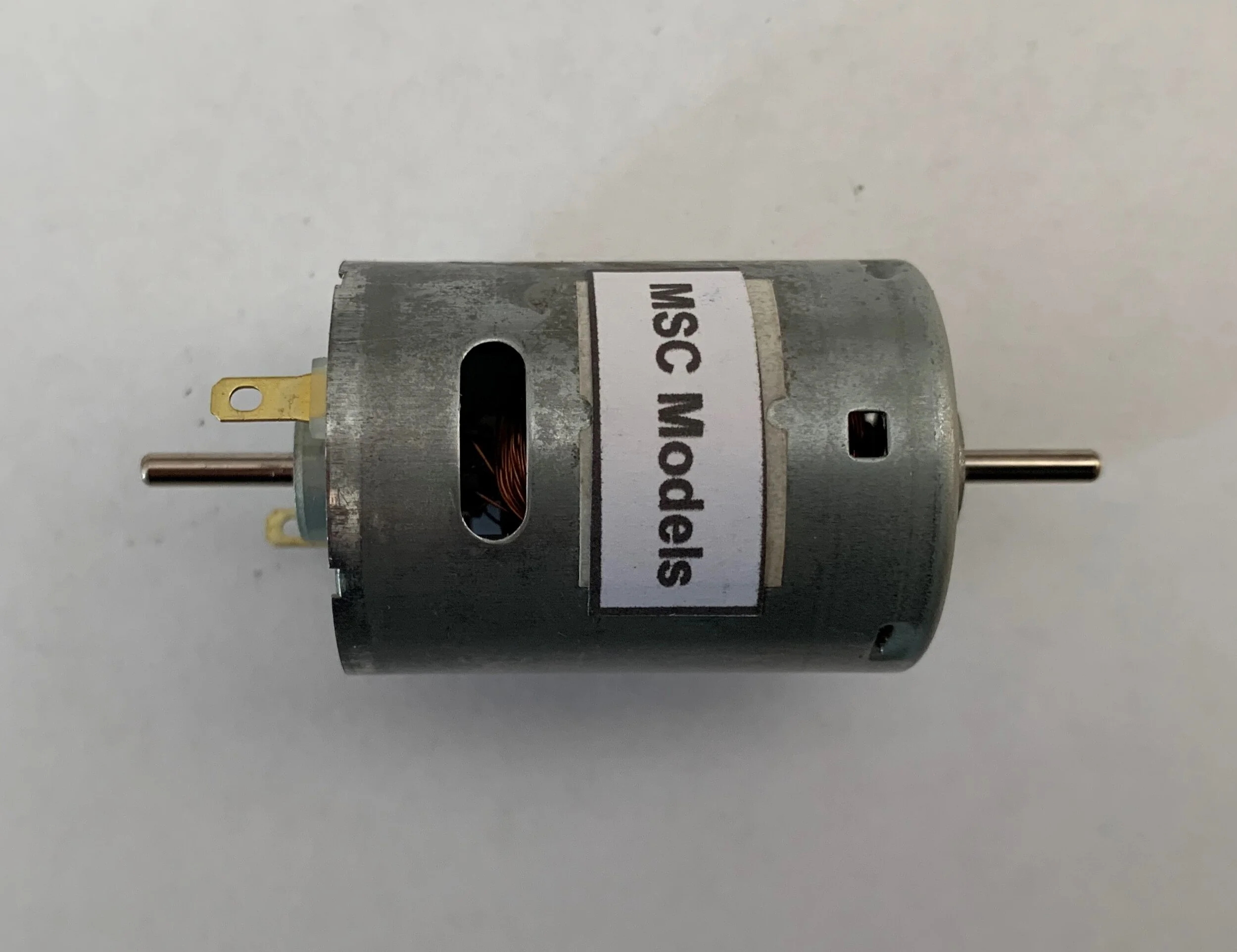

The JH motor on the single reduction gearboxes has a 2.0mm shaft, a no load speed of 8,200 rpm (+/- 10%), and a stalled torque 409 gram cm. The JH motor on the double reduction gearboxes has a 2.3mm shaft.
