Motors & Gearboxes

JH

The JH is the intermediate motor in the range. It is designed for medium sized locomotives, but can be used in large locomotives where space is at a premium.

The motor can be purchased separately or combined with either a single reduction gearbox or a double reduction gearboxes. The latter units give slightly better control. Gearboxes may also be purchased separately. Flywheels for these units, which are optional extra, are available in two sizes – 22.0 mm or 28.5 mm diameter.

JH single reduction unit - image 3

JH single reduction unit - image 3

The single reduction gearbox suitable for this motor is available in three ratios, 18:1, 25:1 or 36:1 – the lower the number the faster the locomotive.

JH Single Reduction unit - image 4

JH Single Reduction unit - image 4

JH double reuction unit - image 5

JH double reuction unit - image 5

The double reduction gearbox suitable for this motor is available in two ratios; 25:1 & 33:1 – the lower the number the faster the drive axle revolves.

JH Double Reduction unit - image 6

JH Double Reduction unit - image 6

The JH motor has a  2.0mm shaft, a no load speed of 8,200 rpm (+/- 10%), and a stalled torque 409 gram cm

Price (£) Price (£) P&P (£)
  FOR MEMBERS OF GOG/GIMRA/ALSRM/HRCA
Motor only 45.50 35.00 4.00
Motor and single reduction gearbox (18:1, 25:1 or 36:1 ratios) unit 67.50 52.00 4.00
Single reduction gearbox (18:1, 25:1 or 36:1 ratios) only 50.00 38.50 4.00
Motor and double reduction gearbox; (25:1 & 33:1 ratios) unit 98.50 75.00 4.00
Double reduction gearbox; (25:1 & 33:1 ratios) only 69.50 53.50 4.00



MT Helical Range

Formerly available from Ron Chaplin, this is a range of helical gearbox units mounted on the Canon EN22 motor. Helical gearboxes are mechanically more efficient than worm drive units, thereby allowing the use of a smaller motor for medium and larger size units where space is at a premium.

In addition to the range available with 3/16” wheel axles, we offer 14:1 and 30:1 two stage units with a ¼” wheel axle for Gauge 1 etc. The 14/1 ratio is very suitable for driving bogies on diesel or electric locomotives.

In addition to four ratios available for a conventionally shaped gearbox intended for steam locomotives, there is one unit that has been specifically designed for diesel and electric locomotives (including EMUs and DMUs). The gearbox has been designed in such a way that a Delrin drive sprocket (not supplied) can be fitted to the driving axle to enable a chain drive unit to be made.

These units are only available complete. A 22.0 mm diameter flywheel is an optional extra on these units.

MT Helical standard unit - image 7

MT Helical standard unit - image 7

The gearboxes in this range are available in four ratios, 22:1 2 stage, 30:1 2 stage, 30:1 3 stage or 40:1 3 stage – the lower the number the faster the drive axle revolves – final output speed is dependant on driving wheel diameter.

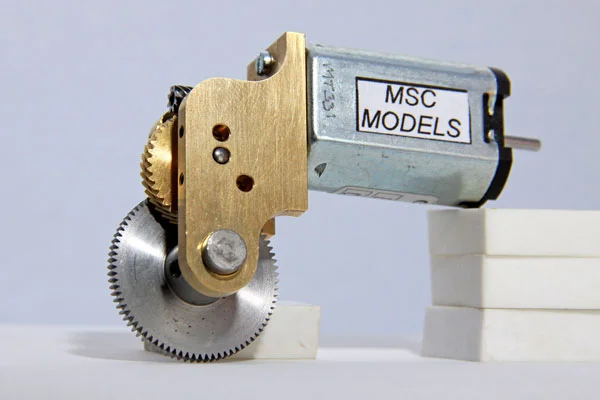

MT-Helical-30-to-1-2stage-unit-for-gauge-1-image-7a2

MT-Helical-30-to-1-2stage-unit-for-gauge-1-image-7a2



The ¼” axle version of this unit is  available with 2 stage 30:1 gearbox.

MT Helical 30-1 2 Stage image 8

MT Helical 30-1 2 Stage image 8

MT helical diesel - image 9

MT helical diesel - image 9

The gearbox for the diesel drive unit is available in a 14:1 2 stage ratio for either 3/16th or 1/4 inch axle.

MT Diesel 2 stage 14-1 - image 10

MT Diesel 2 stage 14-1 - image 10



The Canon motor has a 2.0mm shaft, a no load speed of 7,000 rpm (+/- 10%), and a rated current of 180mA.

Price (£) Price (£) P&P (£)
  FOR MEMBERS OF GOG/GIMRA/ALSRM/HRCA
2 Stage 22:1 motor gearbox unit 132.00 106.00 4.00
2 Stage 30:1 motor gearbox unit 132.00 106.00 4.00
3 Stage 30:1 motor gearbox unit 140.00 112.00 4.00
3 Stage 40:1 motor gearbox unit 140.00 112.00 4.00
2 Stage 30:1 motor gearbox unit – ¼” axle 140.00 112.00 4.00
Diesel 2 Stage 14:1 motor gearbox unit – ¼” axle 142.00 114.00 4.00
Diesel 2 Stage 14:1 motor gearbox unit – 3/16" axle 120.00 96.00 4.00

SM 1532

This is a small worm driven motor gearbox unit powered by the new 1532 SM motor. It is available in 25:1, 30:1 and 40:1 single reduction gearbox ratio’s. The SM is a 5-pole motor with approximately 2.9 watts of power it is 15mm wide and 32mm long with shafts at both end. It has a 10000rpm running speed with 8000rpm working speed. See prices below and photo a bottom of page.

Mashima 1833

This gearbox unit is powered by the Mashima 1833 motor and is suitable for medium and smaller locomotives. The 40:1 gearbox ratio is particularly suitable for shunting and slow speed operation. Single or double reduction gearboxes are available and both the motor and gearbox can be purchased separately, if required. A 22.0 mm diameter flywheel is an optional extra on these units.

Mashima single reduction unit - image 11

Mashima single reduction unit - image 11

The single reduction gearbox suitable for this motor is available in two ratios, 25:1 or 40:1 – the lower the number the faster the drive axle revolves.

Mashima unit - image 12

Mashima unit - image 12

The Mashima motor has a skewed armature, 2.0mm shaft, a no load speed of 8,500 rpm (+/- 10%), and a rated current of 90mA.

Masihima 1626

The Mashima 1626 motor is also available as a worm driven unit with a 40:1 gearbox.

Price (£) Price (£) P&P (£)
  FOR MEMBERS OF GOG/GIMRA/ALSRM/HRCA
Mashima 1833 Motor only 34.50 27.50 4.00
Mashima 1626 Motor only 32.50 25.50 4.00
SM 1532 Motor and worm single reduction gearbox, 3/16” axle - (25:1, 30:1 or 40:1 ratio) 65.00 50.00 4.00
Mashima 1833 Motor and worm single reduction gearbox, 3/16” axle - (25:1 or 40:1 ratio) 65.00 50.00 4.00
Mashima 1626 Motor and worm single reduction gearbox, 3/16” axle - (40:1 ratio) 65.00 50.00 4.00
Mashima 1833 Motor and worm double reduction gearbox, 3/16” axle - (25:1, 33:1 or 50:1 ratio) 93.50 70.00 4.00
25:1 or 40:1 worm single reduction gearbox unit only 50.00 38.50 4.00
25:1, 33:1 or 50:1 worm double reduction gearbox unit only 69.50 53.50 4.00

Mashima double reduction reduction gearbox units shown above - available in25:1, 33:1 and 50:1 ratios. See pricelist for drawing, for prices see above.

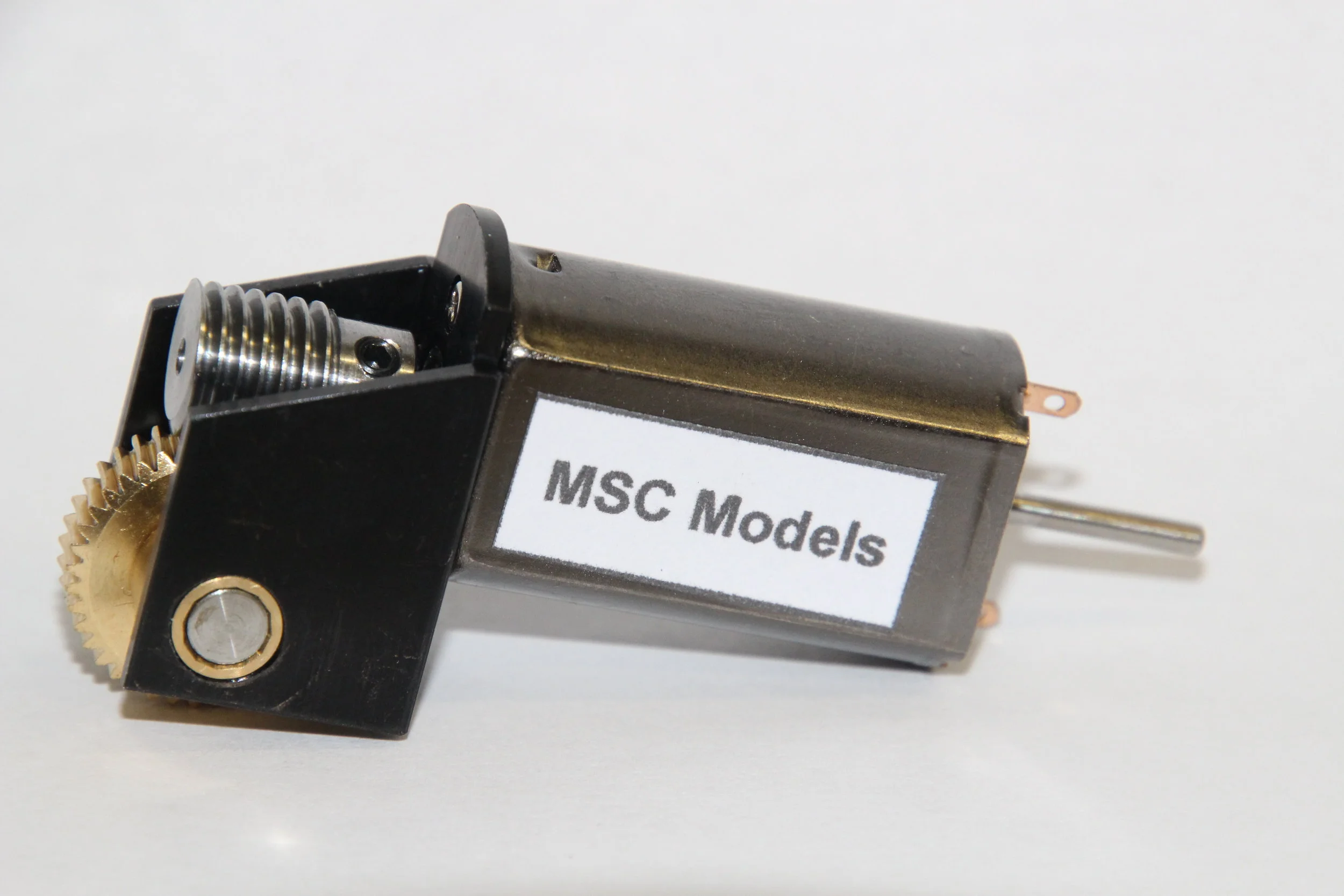

SM 1532 Motor 40:1 single reduction gearbox unit - Also available with a 25:1 and 30: gearbox. See prices above and price list for drawing.

SM 1532 Motor 40:1 single reduction gearbox unit - Also available with a 25:1 and 30: gearbox. See prices above and price list for drawing.
